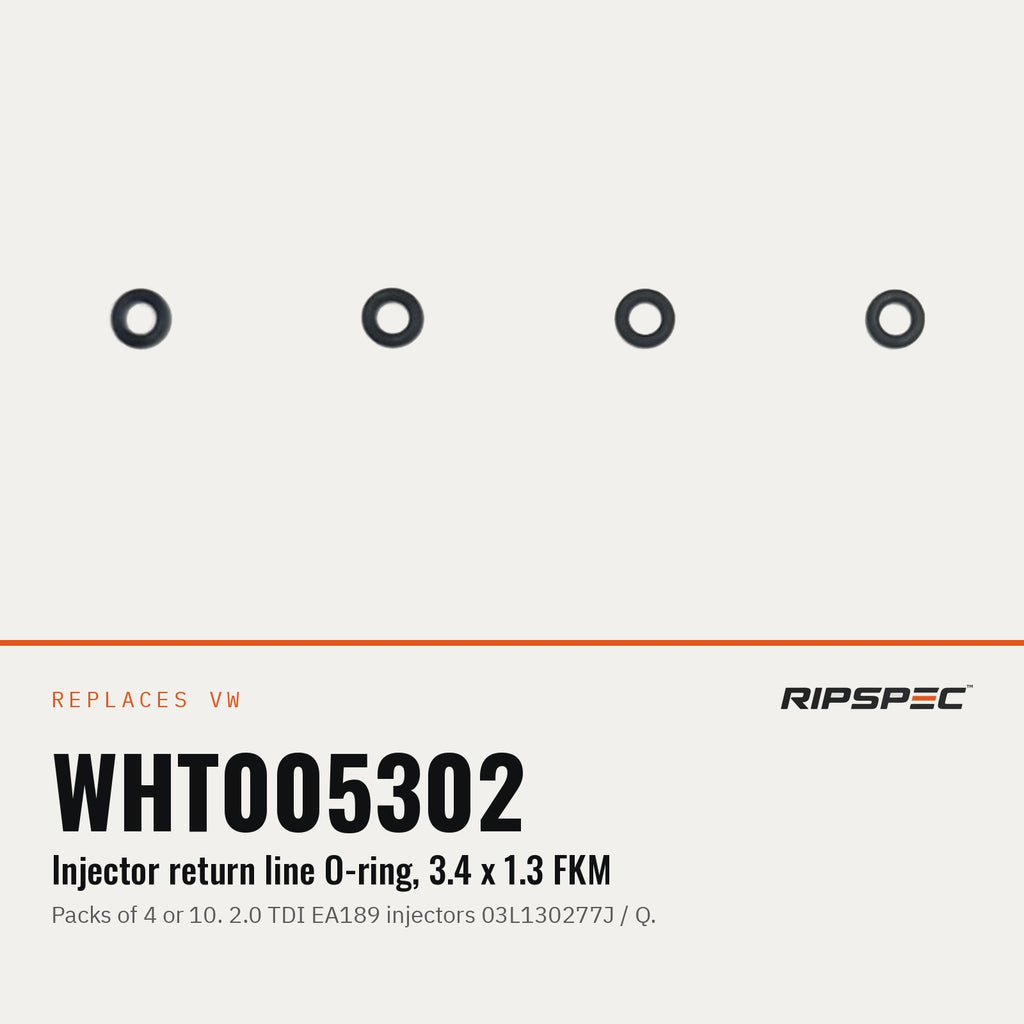

Injector Return Line O-ring WHT005302 3.4 x 1.3 FKM, Packs of 4 or 10

RIPSPEC injector return line O-ring, replaces VW WHT005302

Injector Return Line O-ring WHT005302 for VW, Audi, SEAT and Skoda 2.0 TDI (EA189)

£4.99

The small O-ring that seals the return line (leak-off) connector on top of the injector. Replaces VW WHT005302. For 2.0 TDI common rail EA189 engines with injectors 03L130277J and 03L130277Q, checked against VW parts data down to engine code.

Choose your pack

Pack	For
4	One engine (one ring per injector)
10	Workshop pack

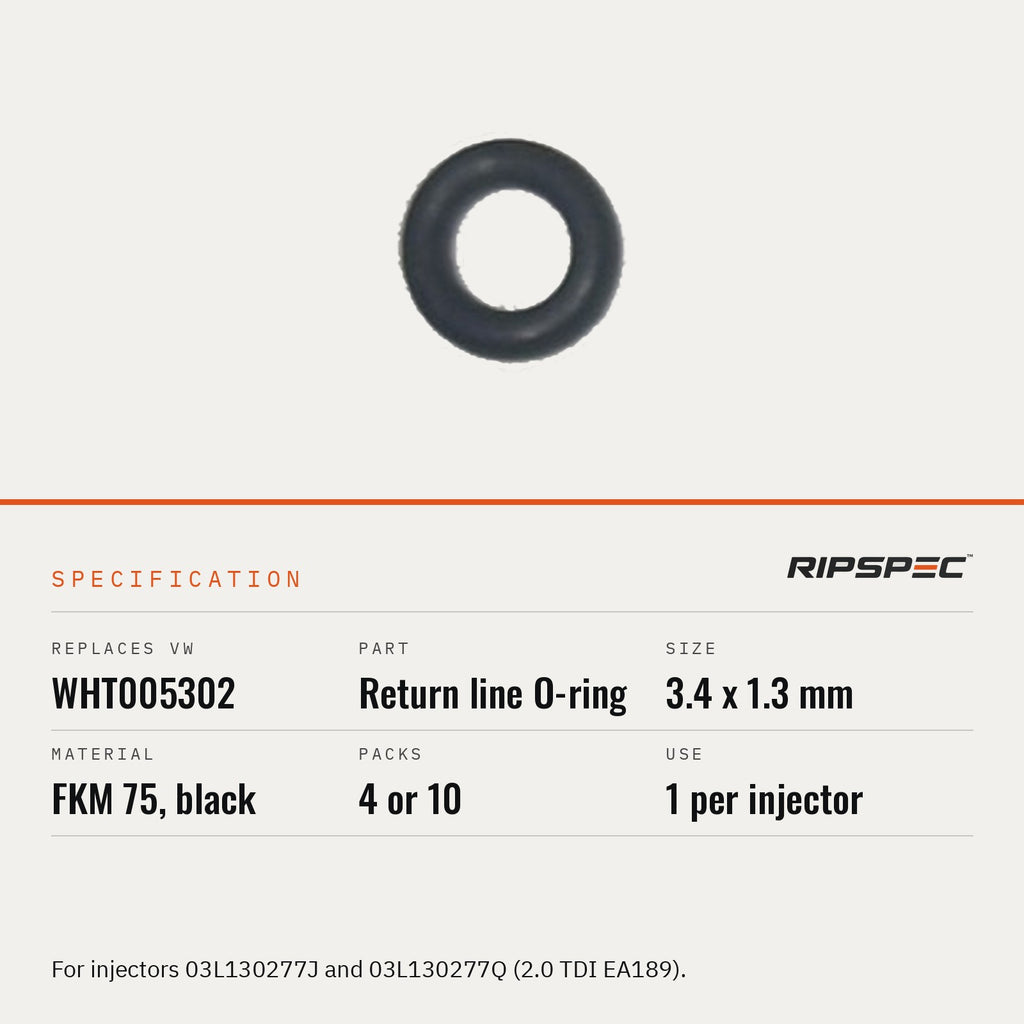

Specification

Replaces VW	Part	Size	Material
WHT005302	Return line O-ring	3.4 x 1.3 mm (VW lists 3.5 x 1.25)	FKM (fluoroelastomer) 75 Shore A, black

Please check before you buy

VW uses several different return line rings. This one is for the 2.0 TDI EA189 engines listed below.
The 1.6 TDI uses WHT005301 / WHT006492, and most EA288 engines use WHT006497A or WHT007480A. This page does not cover them.
2.0 TDI Crafter (CKTB, CKTC, CKUB, CKUC) can take this ring or WHT006497A depending on build. Send us your VIN and we will check.

Need the body O-rings and copper washers as well? See our injector seal kits.

Fits these engine codes

Your engine code is on the sticker in the service book, on the spare wheel well label, or on the engine itself.

CFFA CFFB CFGB CFGC CFHB CFHC CFHE CFHF CFJA CGLC CGLD CGLE CJCA CJCB CJCC CJCD CLCA CLCB CLLA CMFA CMFB CMGB

Vehicles

Make	Models (2.0 TDI common rail)
Audi	A1, A3 (8P), A3 Cabriolet, A3 Sportback, A4 B8 and Allroad, A5 Coupe, Cabriolet and Sportback, A6 C7, Q3, Q5 (8R), TT (8J)
SEAT	Alhambra (710), Altea and Altea XL, Exeo, Leon (1P)
Skoda	Octavia II, Superb II, Yeti
VW	Beetle, Caddy III and IV, CC and Passat CC, Eos, Golf VI and Golf Plus, Jetta, Passat B7, Scirocco, Sharan (7N), Tiguan (5N), Touran

Each vehicle is covered only with the engine codes above. Full year ranges per model are on our injector seal kit pages.

About the parts

Matched to the VW part number they replace and measured at goods-in. Supplied as RIPSPEC parts in a labelled, batch-tracked bag.

Postage

Free Royal Mail Tracked 24 on orders of £8.95 or more, including the 10-pack. Smaller orders are £2.95. Add a pack to any kit and the whole order ships free.
