Throttle Body Bolts x4 for BMW 6 Series E63, E64 and 7 Series E38, E65, E66, F01, F02
Throttle Body Bolts x4 for BMW 6 Series E63, E64 and 7 Series E38, E65, E66, F01, F02
A set of 4 genuine BMW throttle body mounting bolts for the 6 and 7 Series with the M54, M62, N52, N53, N54 and N62 petrol engines. Every vehicle listed below has been checked against BMW parts data.

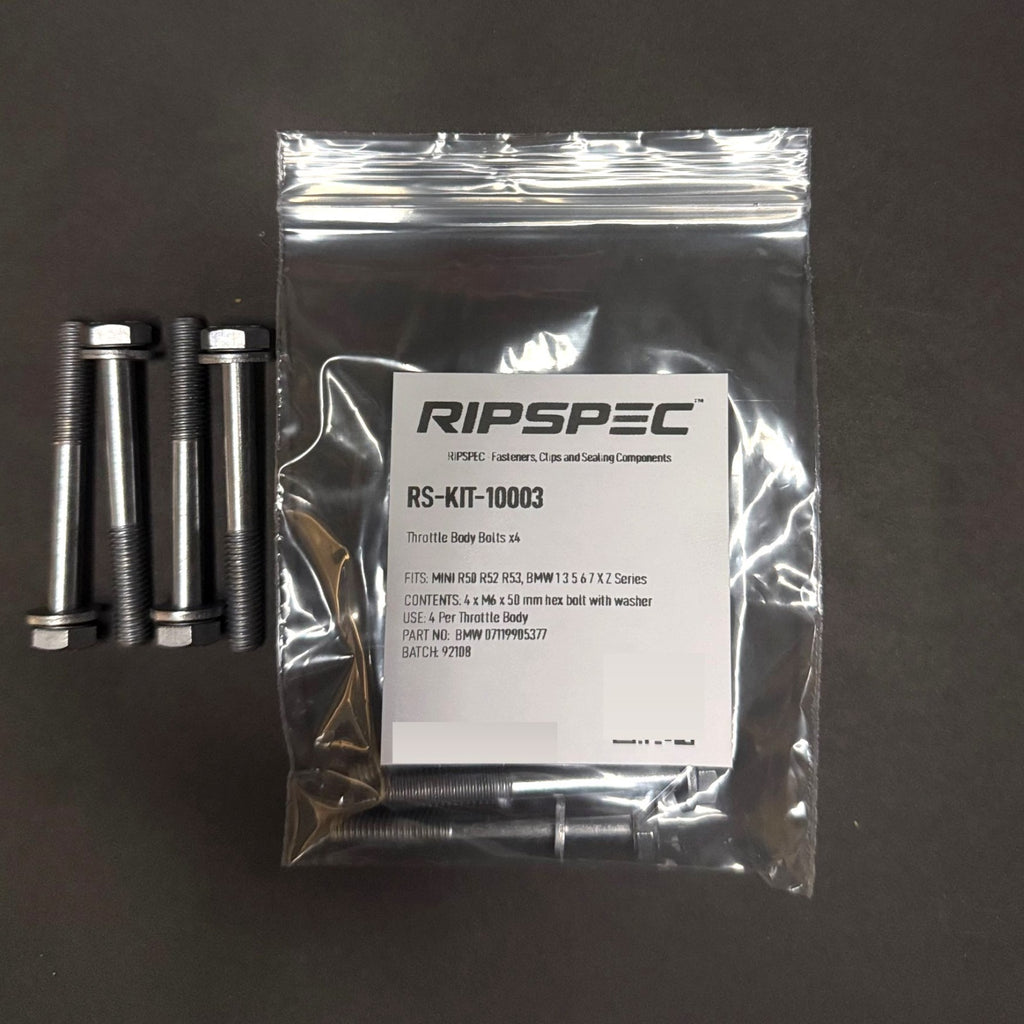

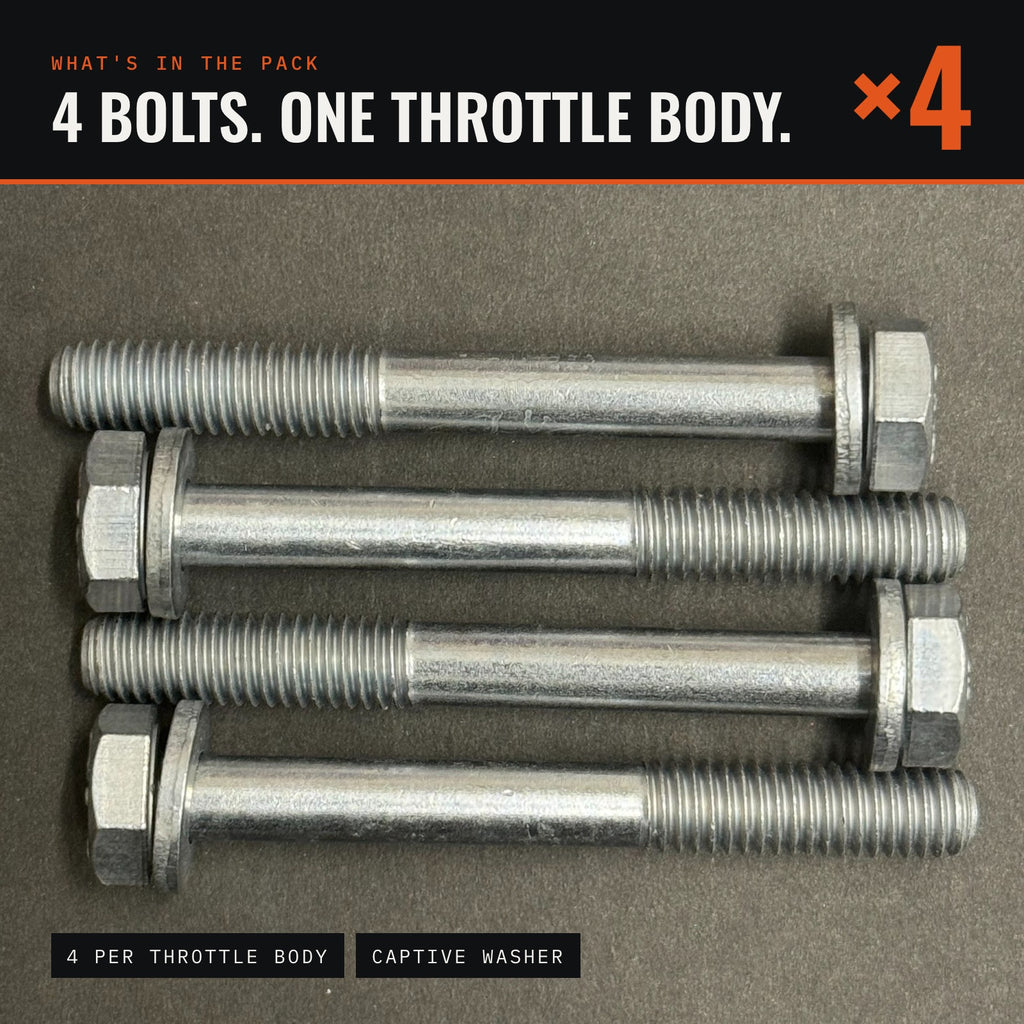

What's in the pack
| Qty | BMW part number | Part | Specification |
|---|---|---|---|
| 4 | 07 11 9 905 377 | Hex bolt with washer, throttle body to intake | M6 x 50 mm, zinc-nickel finish, chrome-free |

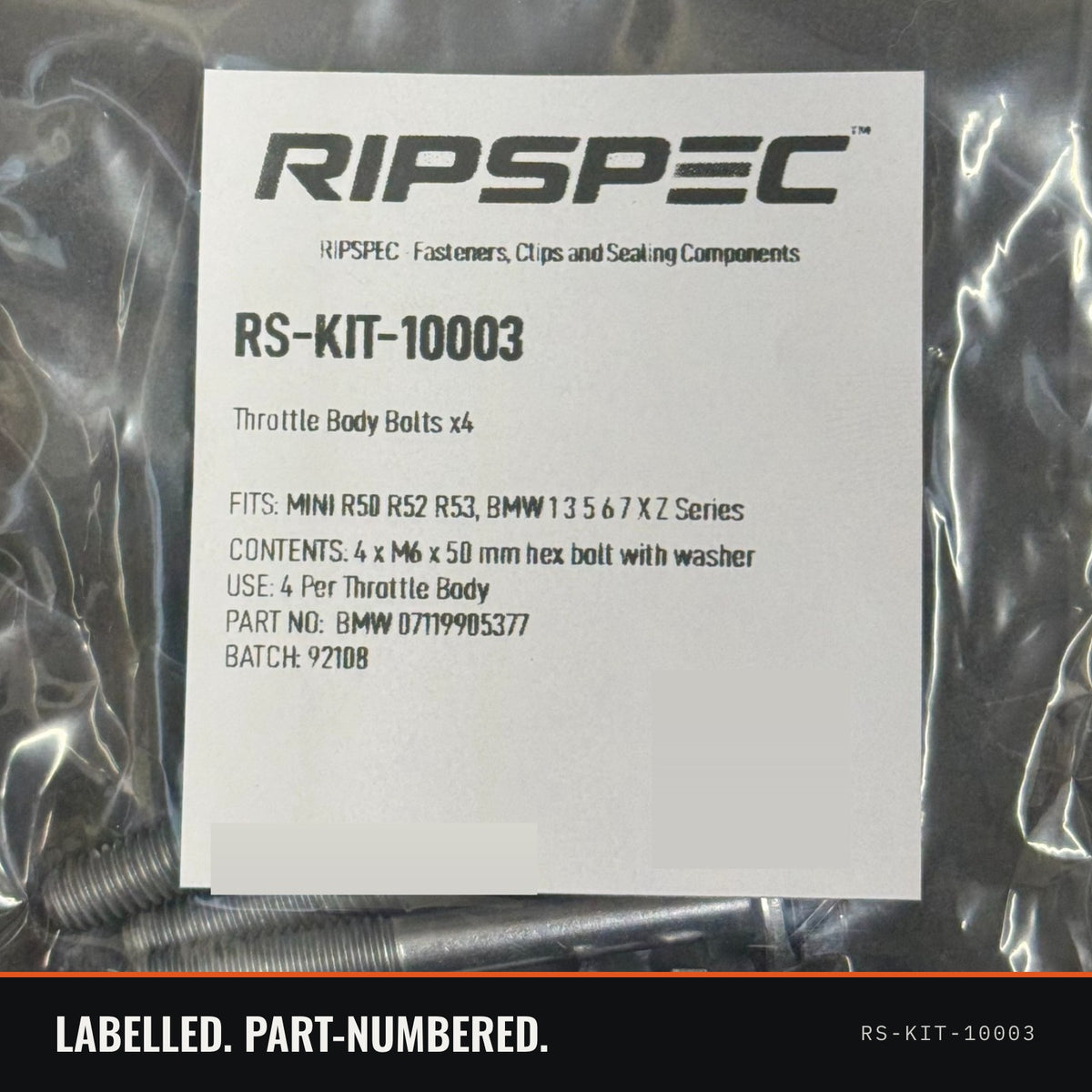

Genuine BMW bolts. We buy them in bulk and repack them into RIPSPEC bags of 4, so they arrive in our packaging. The original BMW packaging is shown in the photos.
Fits these engines
Your engine code is in the vehicle documents and on the engine. If you're not sure, send us your registration or VIN and we'll check.

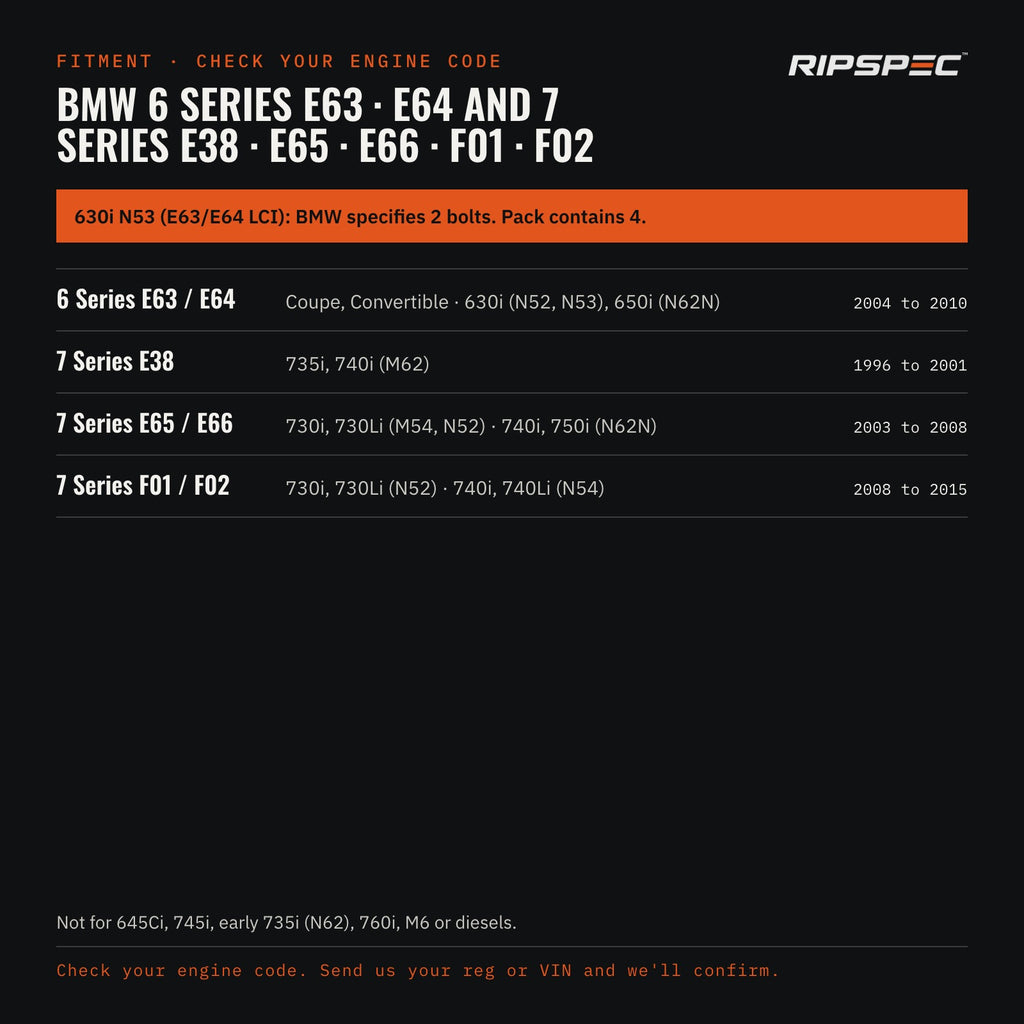

Vehicles this pack fits
| Model | Version | Engine | Litres | hp | Built |
|---|---|---|---|---|---|
| 6 (E63) | 630 i | N52 | 3.0 | 258 | 09/2004 to 08/2007 |
| 6 (E63) | 650 i | N62 | 4.8 | 367 | 09/2005 to 08/2010 |
| 6 (E63) | 630 i | N53 | 3.0 | 272 | 09/2007 to 08/2010 |
| 6 (E63) | 630 i | N52 | 3.0 | 272 | 09/2007 to 08/2010 |
| 6 Convertible (E64) | 630 i | N52 | 3.0 | 258 | 09/2004 to 08/2007 |
| 6 Convertible (E64) | 650 i | N62 | 4.8 | 367 | 09/2005 to 08/2010 |
| 6 Convertible (E64) | 630 i | N53 | 3.0 | 272 | 09/2007 to 08/2010 |
| 6 Convertible (E64) | 630 i | N52 | 3.0 | 272 | 09/2007 to 08/2010 |
| 7 (E38) | 740 i, iL | M62 | 4.4 | 286 | 02/1996 to 07/2001 |
| 7 (E38) | 735 i, iL | M62 | 3.5 | 235 | 03/1996 to 08/1998 |
| 7 (E38) | 735 i, iL | M62 | 3.5 | 238 | 09/1998 to 07/2001 |
| 7 (E65, E66, E67) | 730 i, Li | M54 | 3.0 | 231 | 03/2003 to 07/2008 |
| 7 (E65, E66, E67) | 730 i, Li | N52 | 3.0 | 258 | 03/2005 to 08/2008 |
| 7 (E65, E66, E67) | 730 i, Li | N52 | 3.0 | 250 | 03/2005 to 07/2008 |
| 7 (E65, E66, E67) | 740 i, Li | N62 | 4.0 | 306 | 03/2005 to 08/2008 |
| 7 (E65, E66, E67) | 750 i, Li | N62 | 4.8 | 367 | 03/2005 to 08/2008 |
| 7 (F01, F02, F03, F04) | 740 i, Li | N54 | 3.0 | 326 | 09/2008 to 06/2012 |
| 7 (F01, F02, F03, F04) | 730 i, Li | N52 | 3.0 | 258 | 09/2009 to 06/2015 |
| 7 (F01, F02, F03, F04) | 740 i, Li | N54 | 3.0 | 305 | 09/2010 to 12/2015 |
Please check before you buy
- Match your model and engine to the list above. If you're not sure, send us your VIN or registration and we'll check before you order.
- 630i with the N53 engine (E63/E64 LCI, 2007 on): BMW specifies 2 bolts on this model. The pack contains 4, so you will have 2 spare.
- The 645Ci, 745i and 735i with the early N62 engine use a different bolt and are not covered.
- The M6, the 760i (V12) and the diesel models do not use this bolt.
About the parts

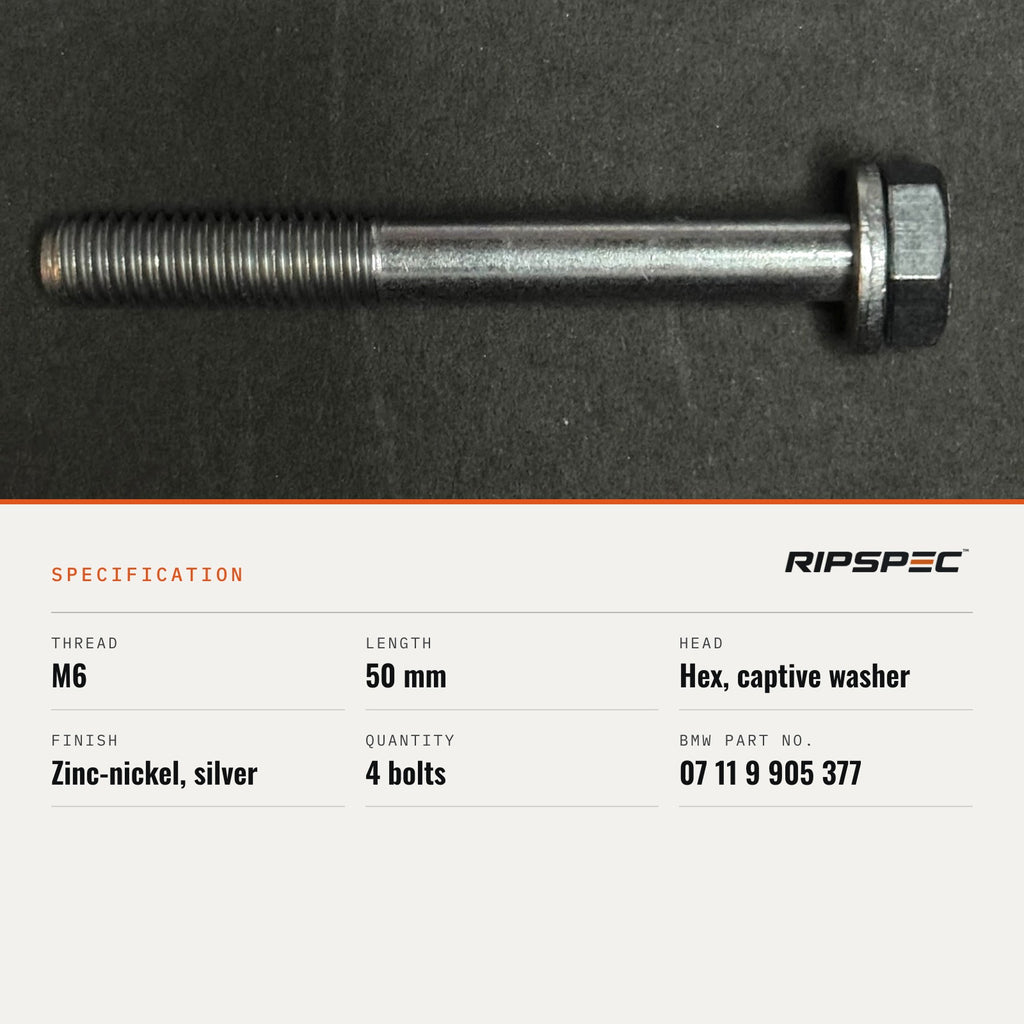

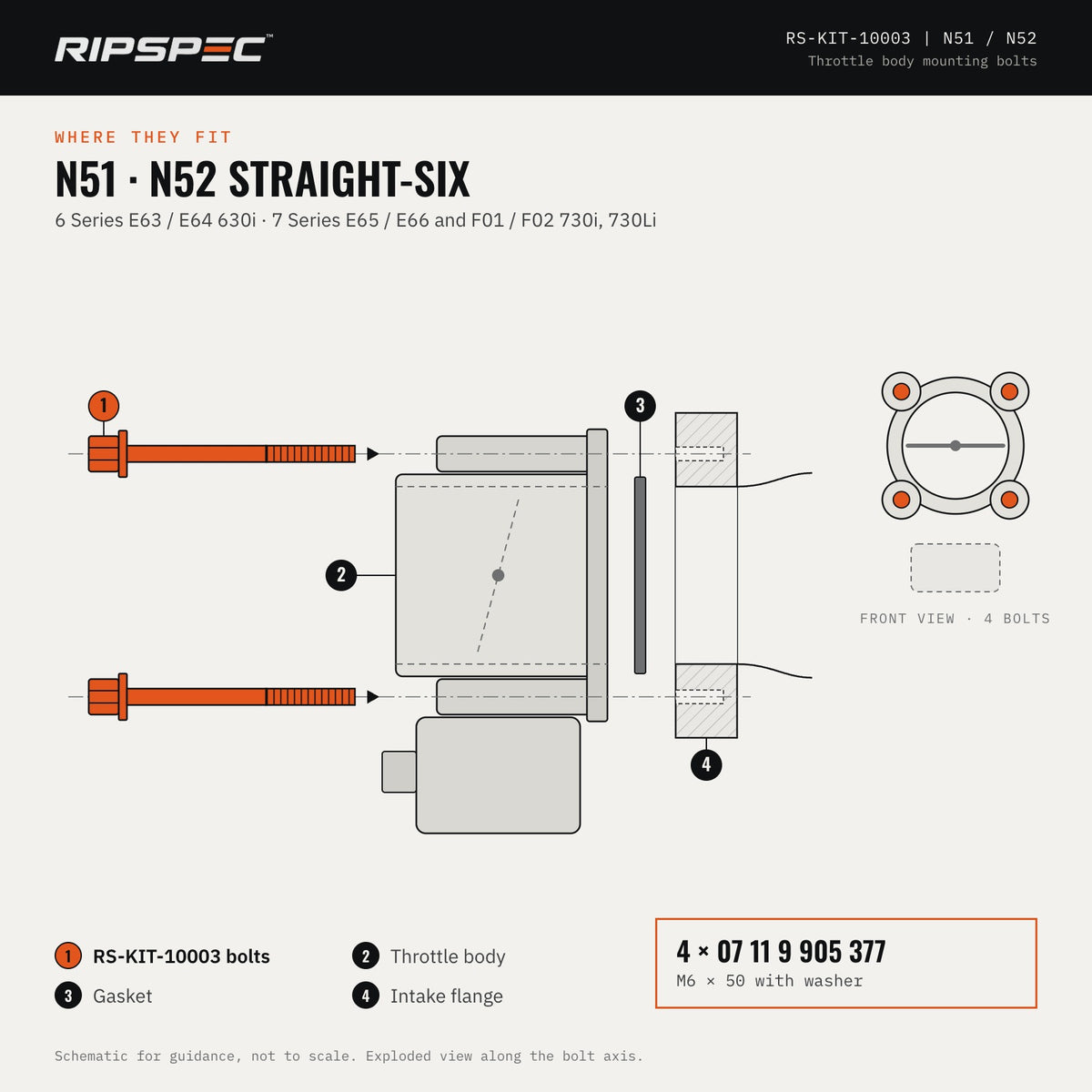

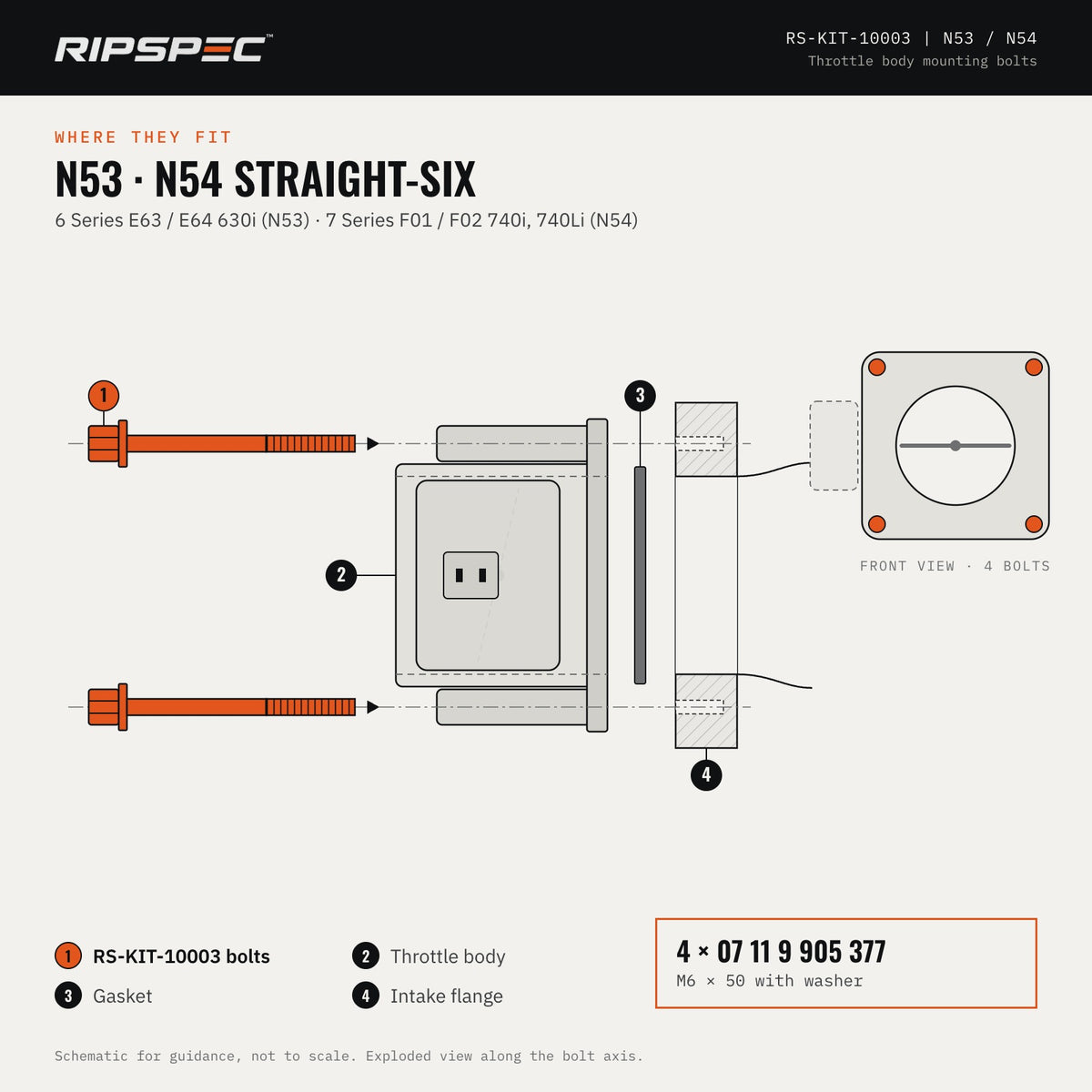

Genuine BMW part number 07119905377: M6 x 50 mm hex bolt with captive washer, zinc-nickel finish. This is the bolt BMW specifies to hold the throttle body to the intake on every vehicle listed. Covered by our 1-year warranty.
Questions
Message us with your registration or VIN and we'll confirm fitment before you buy.
